Alpha 3000F2

Pushbutton Type
(6) two-speed pushbuttons + (1) one-speed pushbutton

Safety/Quality Approvals
CE EN 62368-1、FCC

・Advanced System Software
The Alpha 3000 series utilizes advanced RISC microprocessor control with highly evolved system software that has redundant error checking and correcting capabilities to ensure 100% error-free encoding, transmitting, receiving, decoding and control of all output relays. This highly evolved system software includes CRC (Cyclical Redundancy Check) and Hamming Code (Error Recovery).

・Safe and Reliable Operation
To ensure maximum operating safety the system incorporates numerous important safety features, which include transmitter pushbutton fault-detection → visual warning → auto-shutoff, transmitter low-voltage detection → visual warning → auto-shutoff, receiver fault-detection → auto-shutoff, and receiver MAIN relay auto-disconnect when the system is in sleep mode, radio interference, system out of receiving range, and when transmitter low-voltage condition is detected.

・Secure Operation
Both transmitter and receiver utilize advance 16+1 bit microprocessor control. The availability of 65,536 sets of unique ID code + 63 distinct RF channels ensure that only commands from a matching control transmitter can be carried out, reducing the risk of interference from outside sources.

・Safety MAIN Relay Circuits
For added safety the receiver system utilizes a special “Safety Relay” for the MAIN relay circuits. If the receiver MAIN relay is defective (example: fails to open or close during operation or not responding to a “Stop” command) a fault will be detected and the system will be shut down immediately to avoid possibility of any accidents occurring.

・Ultra Power Saving Circuits
The transmitter utilizes advanced power-saving circuits providing more than 120 hours of continuous operation between battery replacements using just four (4) off-the-shelf “AA” alkaline batteries. The extremely long battery life eliminates the need for frequent replacing and recharging of batteries.

・Industry’s Best 2 & 3-speed Pushbuttons
Custom in-house designed 2 and 3-speed pushbuttons are extremely durable and reliable for a minimum of one million press cycles. Unlike most 2 and 3-speed pushbuttons available from other radio control manufacturers, these pushbuttons are easily manipulated even when the operator is wearing gloves. The snap-action steps provide positive tactile feedback to the operator.


・30 User-Selectable RF Channels
The receiver and transmitter are equipped with PLL (Phase Lock Loop) synthesized RF module with 30 sets of user-selectable RF channels (narrow band FM) adjusted via simple dip-switch settings.

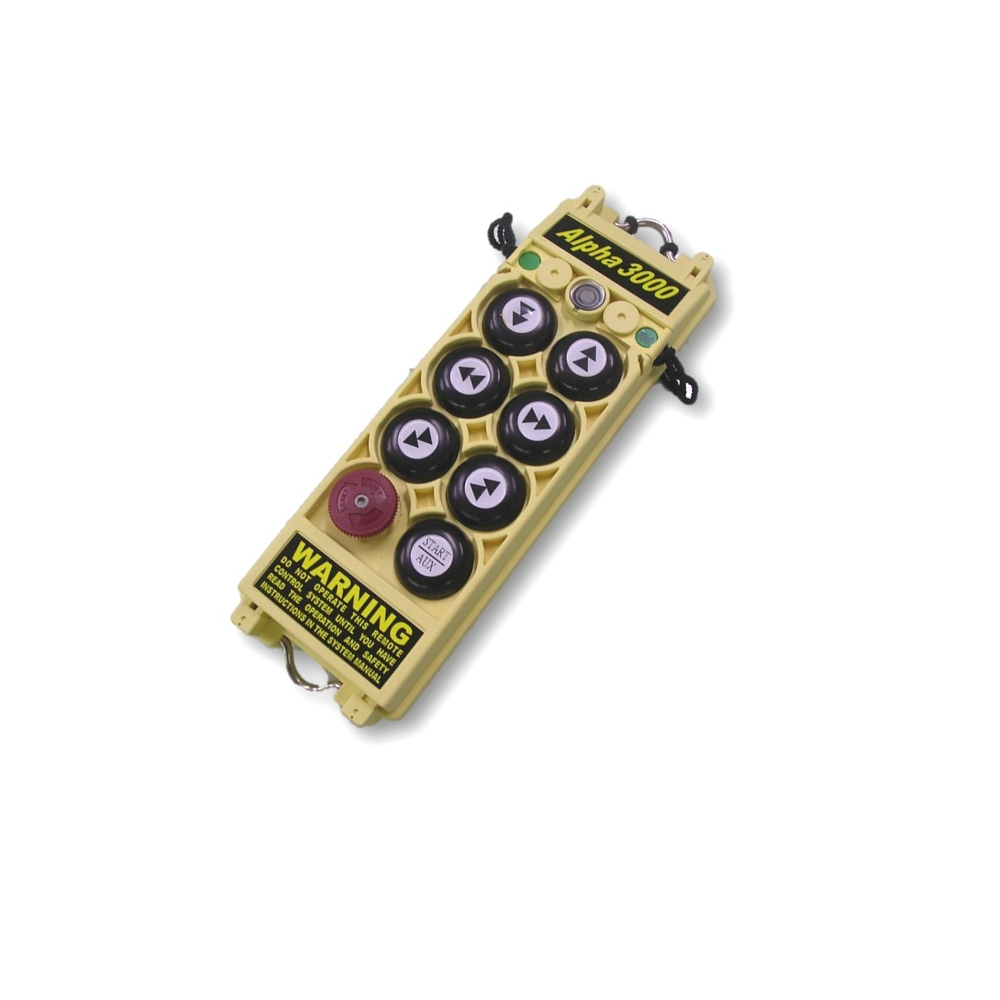

・Durable and Rugged Transmitter
The transmitter enclosures are constructed from industrial strength composite materials (Nylon + Fiberglass) that resist cracking and deformation commonly occurred from frequent drops and long term exposure to heat, sunlight and harsh environments.

・100% Sealed Enclosure
Both transmitter and receiver enclosures are fully sealed and impervious to dust, water, oil, grease, acids, alkaline, heat and sunlight, which provide trouble-free operation in high moisture environments and outdoor applications. The receiver enclosures are fully painted inside and out with stainless steel hinges and key lock.

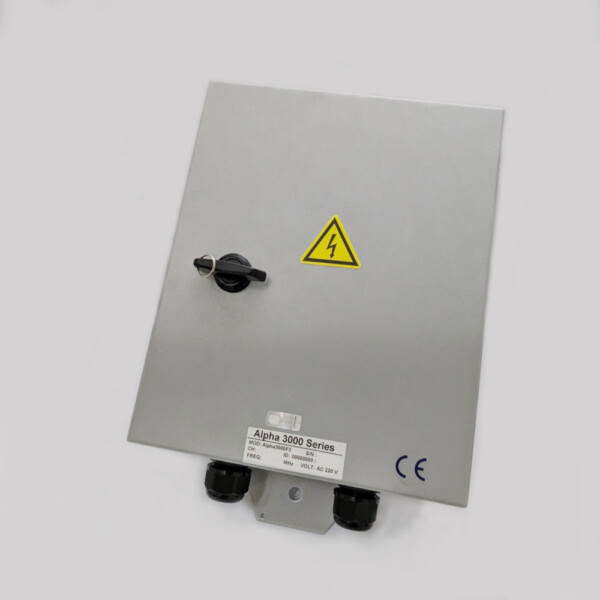

・Modular Receiver
The modular design of the receiver provides easy service maintenance of all internal components. The RF module, decoding module, upper/lower relay boards and power transformer are all placed independently inside the metal enclosure.


・Full Compliance
The Alpha 3000 series are designed and manufactured in accordance with FCC Part-15 Rules, European Directives (CE/CB), Industry Canada Specifications (IC) and ISO 9001 guidelines. No site License is required.
