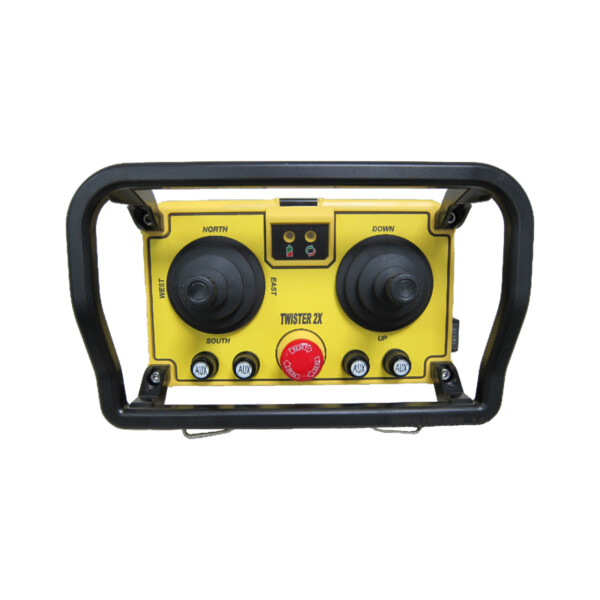

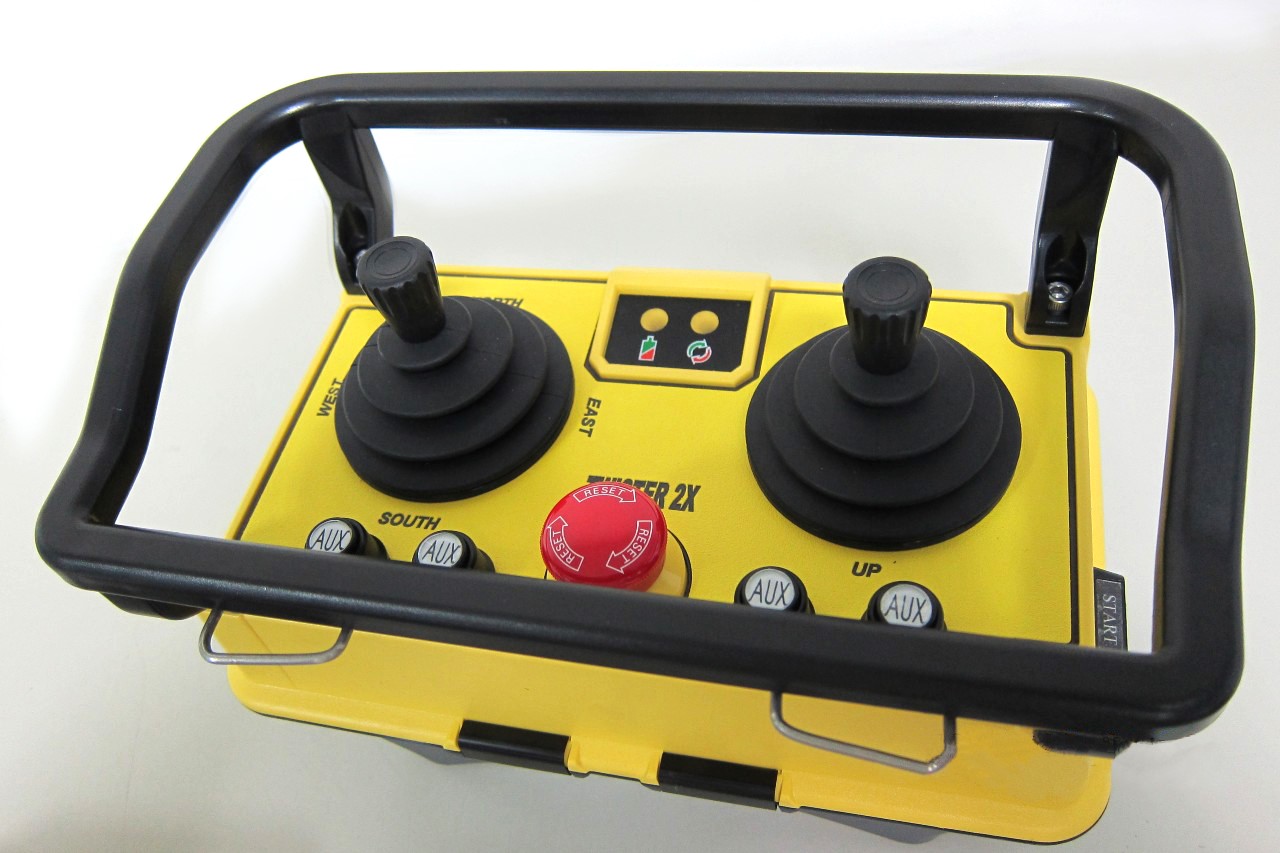

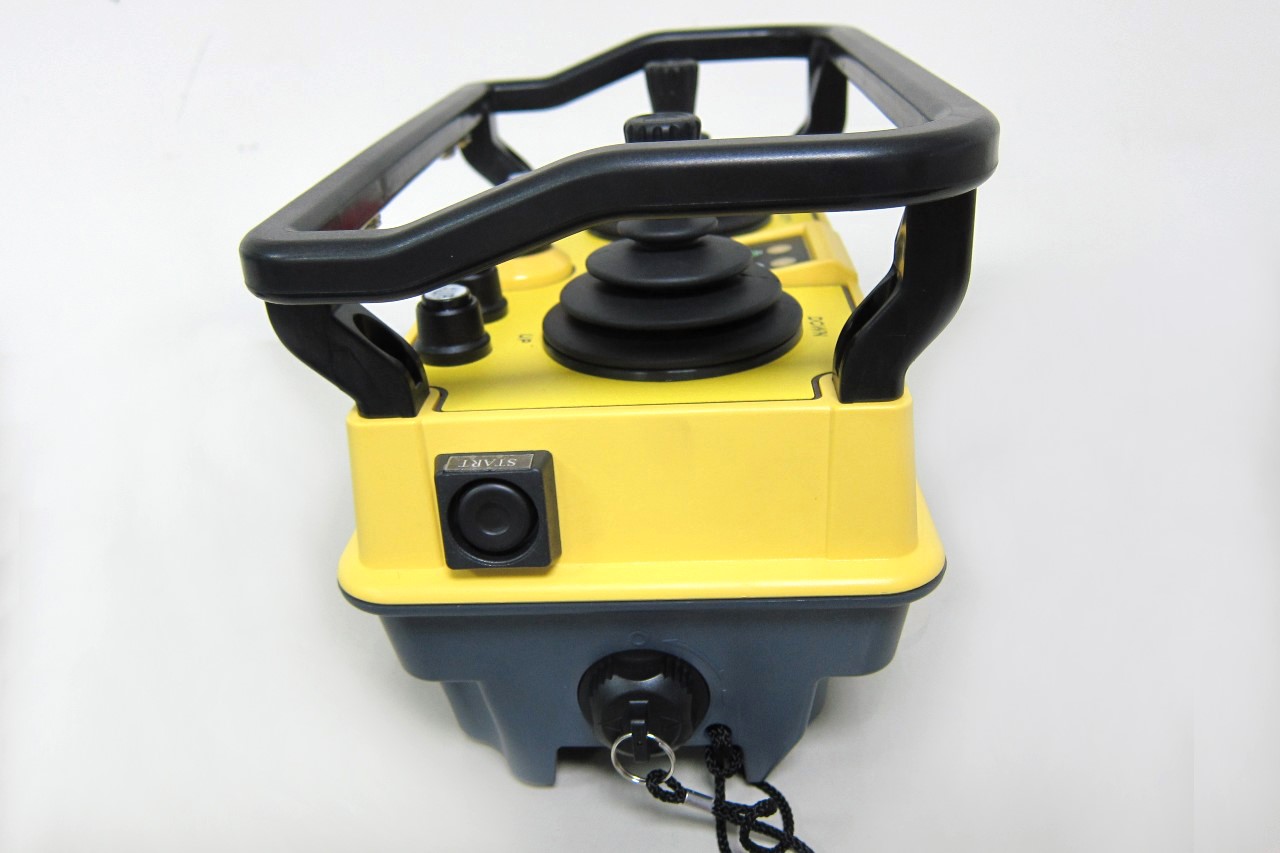

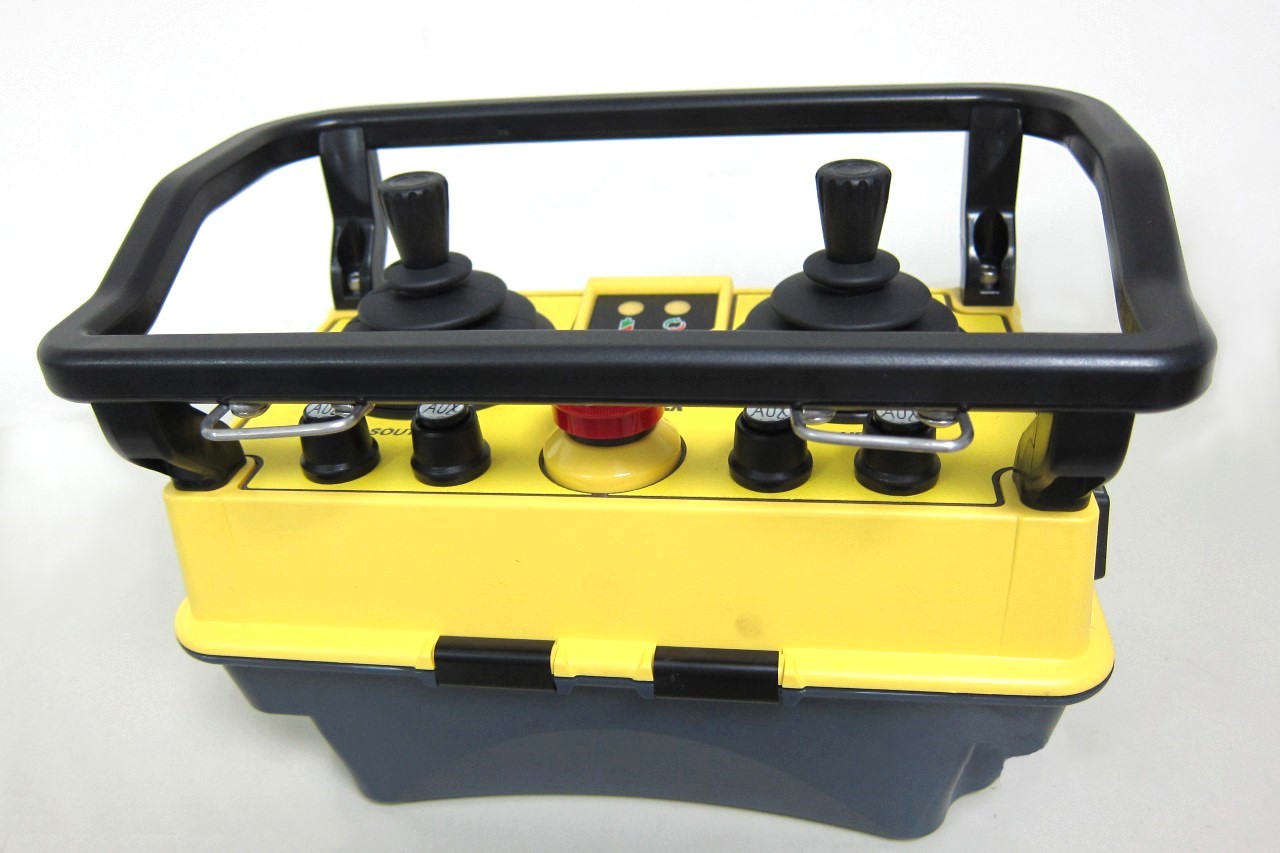

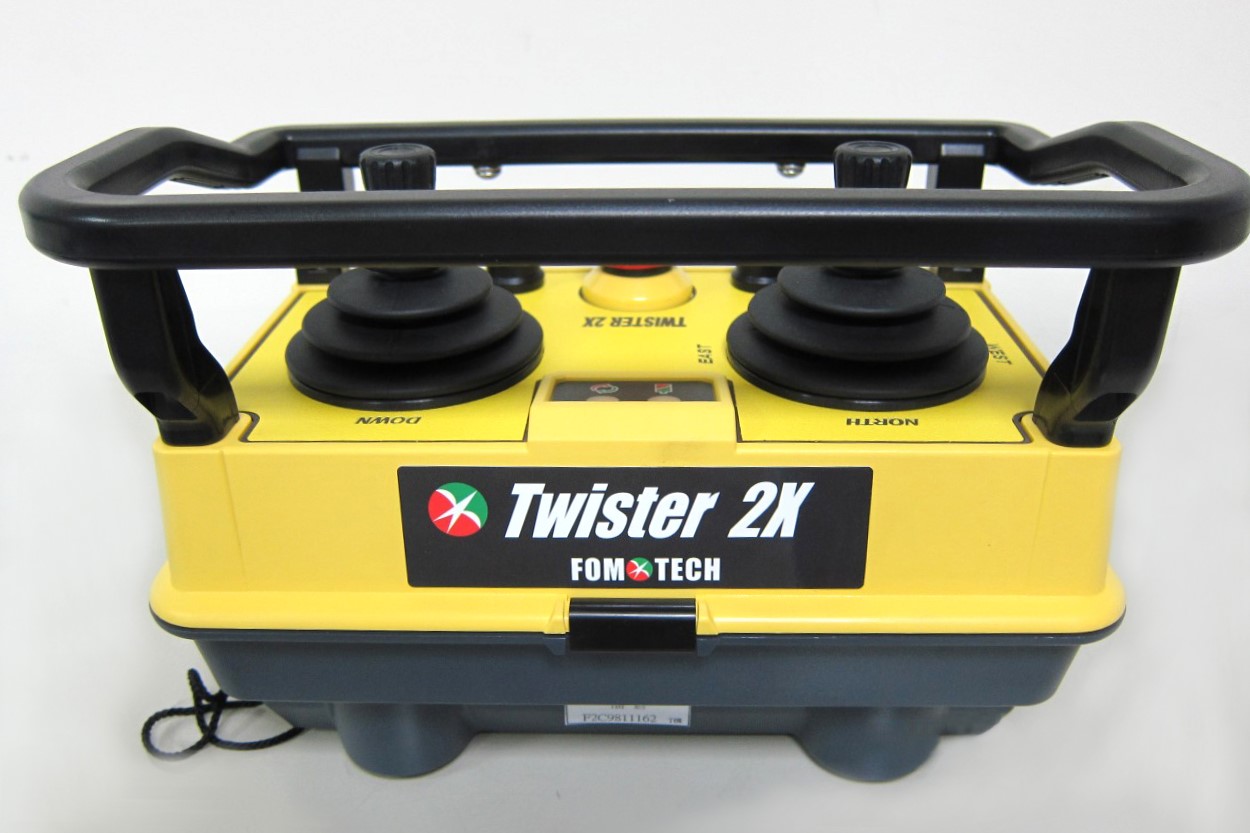

Twister 2X
Joystick Type
digital joystick(one-speed ~ five-speed)
Safety/Quality Approvals
CE EN 62368-1
Categories Joystick Type, Twister 2X
Introduction
Specification
The Twister 2X is a highly sophisticated industrial radio remote control system. The versatile features of Twister 2X permit its usage in a wide range of industrial applications. The system can be used to control all types of industrial cranes, tower cranes, building construction equipment, automatic control systems, mining equipment, and many others…
The Twister 2X incorporates numerous advanced safety features and software programming that will ensure maximum security and safety in the work place.
・Advanced Software Programming
The system is equipped with highly evolved software that has redundant error checking and correcting capabilities to ensure 100% error-free transmission, decoding and control of all output relays. This highly evolved software includes CRC (Cyclical Redundancy Check) and Hamming Codes (Error Recovery).
・Advanced Encoding System
The encoding system utilizes advanced microprocessor control for 100% error-free data transmission. The availability of 65,536 sets of unique security ID codes will ensure that only commands from a matching control transmitter can be carried out without any interference from other radio systems.
・Advanced Decoding System
The decoding system utilizes dual-microprocessor control, which will ensure 100% error-free calculation, bit checking and correction of all incoming data.
・Central Microprocessor
A unique central microprocessor is used for data comparison and cross-checking among the two decoding microprocessors. When faults are detected via this central microprocessor, for maximum safety, the entire system will be shut down immediately to avoid possibility of any accidents occurring.
・PLL Transmission
The system utilizes advanced PLL synthesized RF transmission. It allows the user to select from a wide range of RF channels best suited for the environment. The RF channel is selected via simple dip-switch settings inside the transmitter unit. The RF channel for the receiver is selected via simple button setting on the receiver LCD control panel. The receiver also has the ability to auto-scan from a wide range of RF channels. The receiver will search and locked on to the intended matching control transmitter.
・Full Compliance
The Twister 2X is designed and manufactured in accordance with FCC Part-15 Rules, European Directives (CE/CB), Industry Canada specifications (IC) and ISO 9001 guidlines. No site license is required.
・System Self-Diagnosing Functions
The Twister 2X is equipped with numerous self-diagnosing functions, which include transmitter low-voltage detection, faulty pushbutton and joystick detection, faulty MAIN contact relay detection, faulty relay card detection, faulty EEPROM detection, faulty RF module detection, and many others…
・Programmable Pushbutton Functions
Numerous pushbutton functions can be programmed via an in-house designed programmer unit.
・Durable and Lightweight Joysticks
The in-house designed mini joysticks are made from variety of composite materials, which include metal, stainless steel, zinc alloy, magnesium alloy and aluminum alloy. The combination of these materials make the joysticks extremely durable, reliable and ultra lightweight.
・Photo-Interrupter Sensors
The system incorporates advanced photo-interrupter sensors for the joystick contacts. These photo- interrupter sensors are extremely reliable and durable, which last many times longer than the conventional brush or coil-type contacts.
・BUS Structured Receiver
The BUS structured receiver unit with removable flex cards provides easy service maintenance and inventory of spare parts.
・Intelligent Charger
All systems are equipped with a single-slot battery charger with voltage, temperature and overcharging protection. The charger is also equipped with discharging/auto-charging function to prevent any battery memory buildup.
The Twister 2X incorporates numerous advanced safety features and software programming that will ensure maximum security and safety in the work place.
・Advanced Software Programming
The system is equipped with highly evolved software that has redundant error checking and correcting capabilities to ensure 100% error-free transmission, decoding and control of all output relays. This highly evolved software includes CRC (Cyclical Redundancy Check) and Hamming Codes (Error Recovery).
・Advanced Encoding System
The encoding system utilizes advanced microprocessor control for 100% error-free data transmission. The availability of 65,536 sets of unique security ID codes will ensure that only commands from a matching control transmitter can be carried out without any interference from other radio systems.
・Advanced Decoding System
The decoding system utilizes dual-microprocessor control, which will ensure 100% error-free calculation, bit checking and correction of all incoming data.
・Central Microprocessor
A unique central microprocessor is used for data comparison and cross-checking among the two decoding microprocessors. When faults are detected via this central microprocessor, for maximum safety, the entire system will be shut down immediately to avoid possibility of any accidents occurring.
・PLL Transmission
The system utilizes advanced PLL synthesized RF transmission. It allows the user to select from a wide range of RF channels best suited for the environment. The RF channel is selected via simple dip-switch settings inside the transmitter unit. The RF channel for the receiver is selected via simple button setting on the receiver LCD control panel. The receiver also has the ability to auto-scan from a wide range of RF channels. The receiver will search and locked on to the intended matching control transmitter.
・Full Compliance
The Twister 2X is designed and manufactured in accordance with FCC Part-15 Rules, European Directives (CE/CB), Industry Canada specifications (IC) and ISO 9001 guidlines. No site license is required.
・System Self-Diagnosing Functions
The Twister 2X is equipped with numerous self-diagnosing functions, which include transmitter low-voltage detection, faulty pushbutton and joystick detection, faulty MAIN contact relay detection, faulty relay card detection, faulty EEPROM detection, faulty RF module detection, and many others…
・Programmable Pushbutton Functions
Numerous pushbutton functions can be programmed via an in-house designed programmer unit.
・Durable and Lightweight Joysticks
The in-house designed mini joysticks are made from variety of composite materials, which include metal, stainless steel, zinc alloy, magnesium alloy and aluminum alloy. The combination of these materials make the joysticks extremely durable, reliable and ultra lightweight.
・Photo-Interrupter Sensors
The system incorporates advanced photo-interrupter sensors for the joystick contacts. These photo- interrupter sensors are extremely reliable and durable, which last many times longer than the conventional brush or coil-type contacts.
・BUS Structured Receiver
The BUS structured receiver unit with removable flex cards provides easy service maintenance and inventory of spare parts.
・Intelligent Charger
All systems are equipped with a single-slot battery charger with voltage, temperature and overcharging protection. The charger is also equipped with discharging/auto-charging function to prevent any battery memory buildup.
Transmitter Unit | |
---|---|
Frequency Range:433MHz Transmitter Range:100m Continuous Operating Time:25hrs Security ID code:65,536 sets Channel Spacing:25KHz & 50KHz Hamming Disyance:≧ 6 Frequency Control:VTCXO (PLL) Frequency Drift:< 3ppm @-10℃ ~ 75℃ Frequency Deviatuon:< 1ppm @25℃ Spurious Emission:> 60dBc | Transmitter Power:1.0mW Emission:FID Antenna Impedance:50Ω Enclosure Rating:IP66 Source Voltage:7.2V (2000mA) Current Drain:~ 80mA Operating Temperature:-10℃ ~ 75℃ Dimension:247 x 154 x 182 mm Weight:1,600g (with Battery) |
Receiver Unit | |
---|---|
Frequency Range:433MHz Sensitivity:-125dBm Decoding Reference:FSK Security ID code:65,536 sets Channel Space:25KHz & 50KHz Hamming Distance:≧ 6 Frequency Control:VTCXO (PLL) Frequency Drift:< 3ppm @-10℃ ~ 75℃ Frequency Deviation:< 1ppm @25℃ Data Decoder Reference:Quartz Crystals (PLL) | Responding Time:100ms ~ 300ms Output Contact Rating:250V @10A Antenna Impedance:50Ω Enclosure Rating:IP66 Source Voltage:24-48VAC, 110-240VAC, 380-460VAC, 12-24VDC @50/60Hz. Power Consumption:36VA Operating Temperature:-10℃ ~ 75℃ Dimansion:417 x 309 x 167mm Weight:8,800g |
