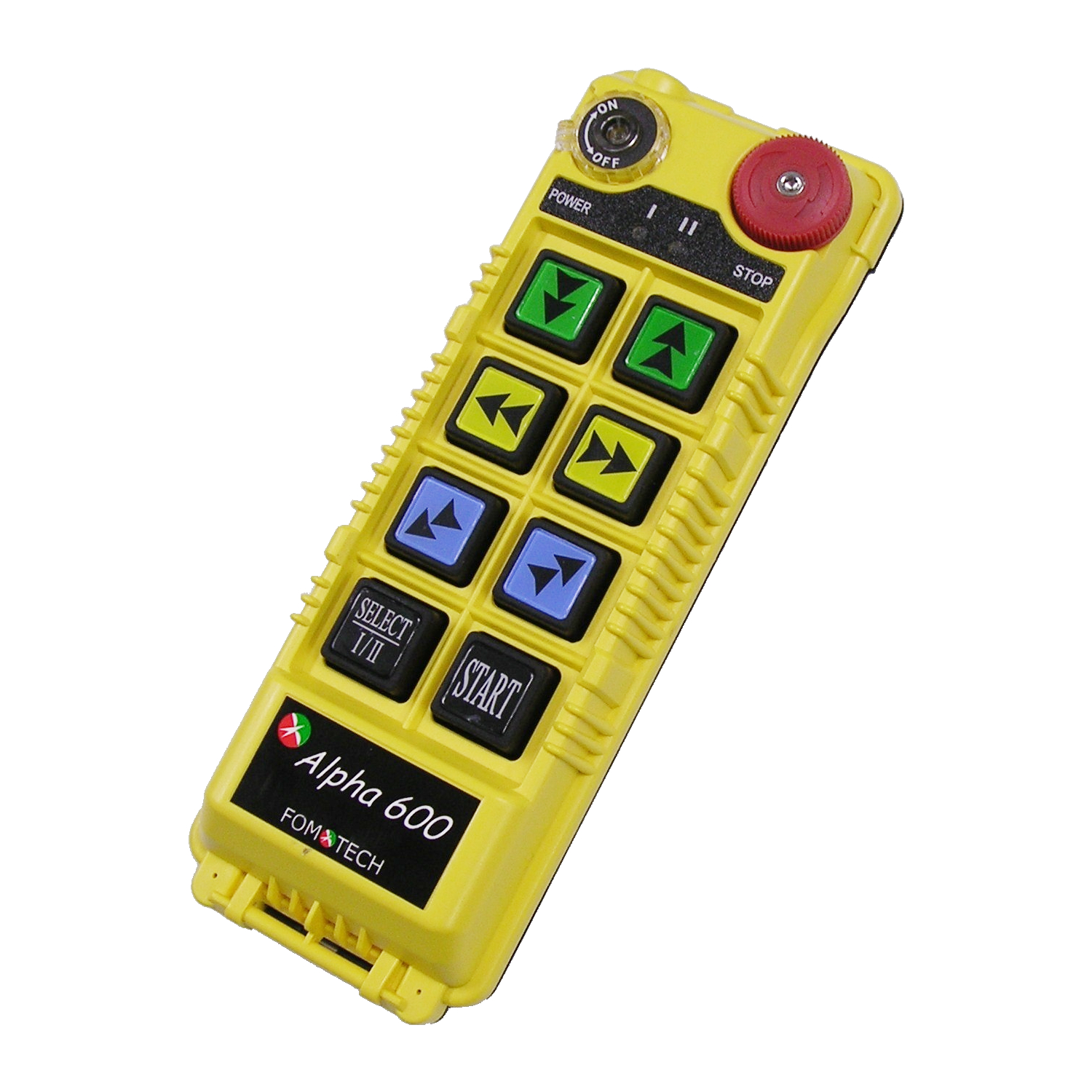

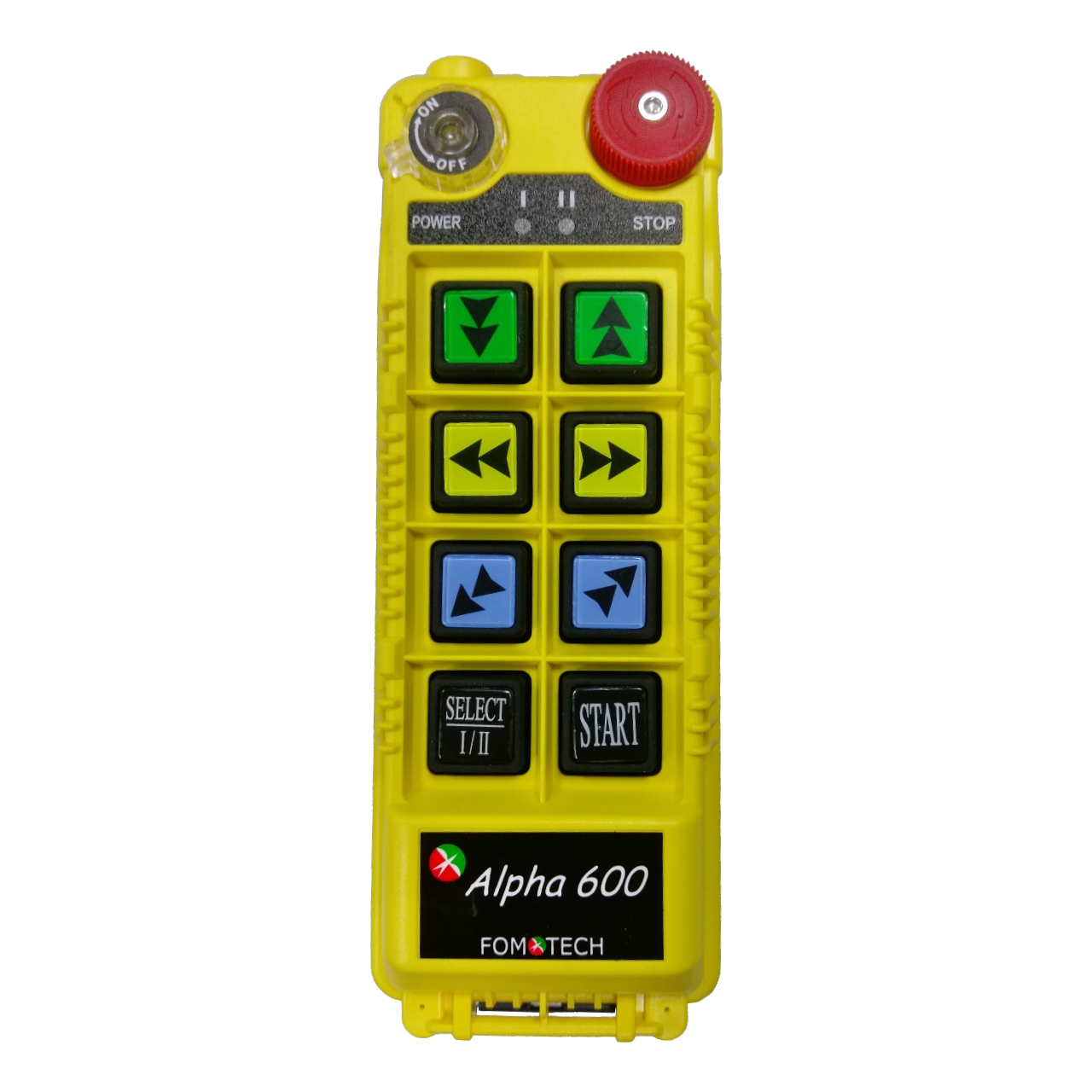

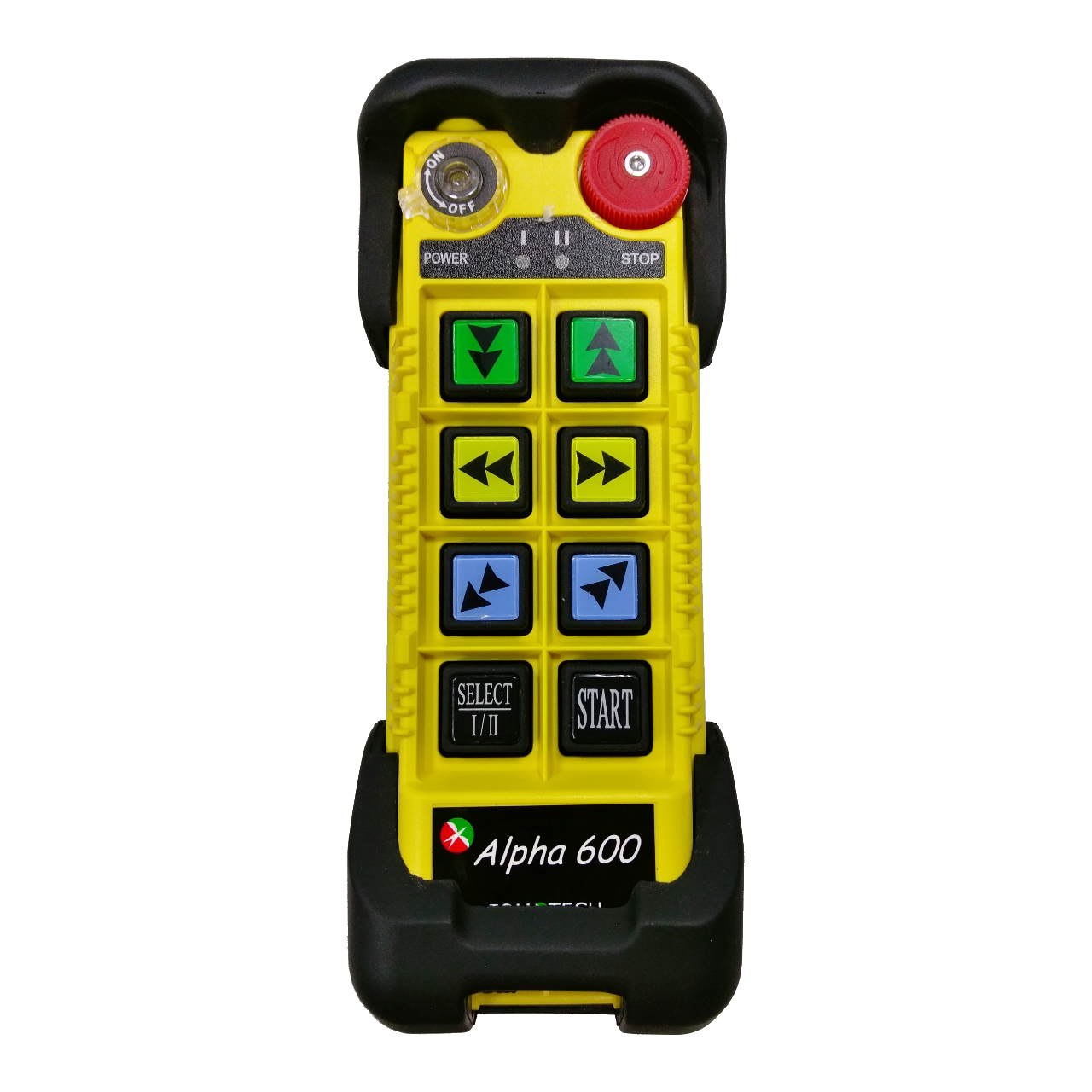

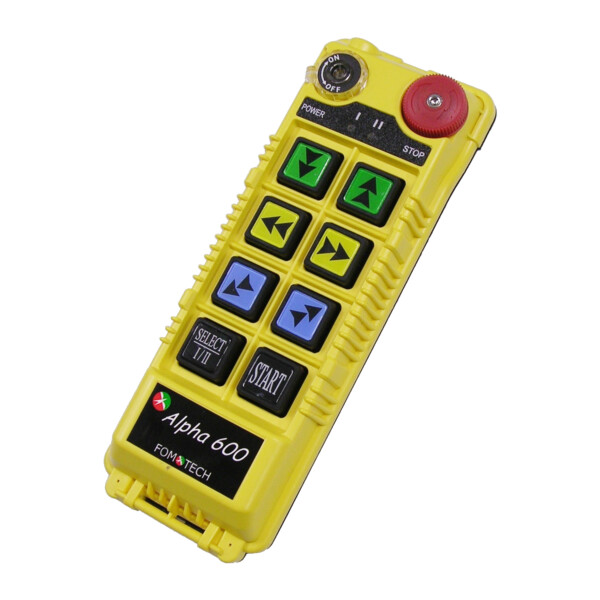

Alpha 607BT
Pushbutton Type
(6) two-speed pushbuttons + (1) select pushbutton
Safety/Quality Approvals
CE EN 62368-1、FCC
Specification
| Transmitter | |
|---|---|
| Source Voltage：AA size x2 alkaline 3.0V /NI-MH AA size x2 battery 2.4v (No contact charging) Antenna Impedance： Internal Antenna 50 ohms, external antenna is available. Dimension：189mm × 68mm × 30mm Weight︰220g nclosure Rating：IP 65 Operating Temperature：-10℃~ +60℃ (> 80℃ high temperature protection) Transmitting Power Consumption： ≦ 20mA @ 3V (Various from encoding mode and transmitting power) Countinue Operating Time：> 100hrs @ batteries full (2000 mAh) | LV Voltage： 2.2V – 2.0V (Normal Ver.) / 2.2V – 1.8V (13849 Ver.) ※ Transmitter RF board Unit Frequency Range：301/419/433/480 MHz Transmitting Power：0.1mW – 10mW Frequency Control：TCXO+PLL Frequency Deviation：1 ppm @ 25℃ Spurious Emission：< -50 dBc Emission：F1D Antenna Impedance：50 ohms ID Bit：16 Bit Error detection code: Hamming code + CRC |
| Receiver | |
|---|---|
| Frequency Band：301/419/433/480 MHz Channel Spacing：25 KHz Frequency Control：PLL Frequency Drift：< 5 ppm @ -20℃ ~ +70℃ Frequency Deviation：< 1ppm @ 25℃ Sensitivity：< -115 dBm Antenna Impedance：50Ω Responding Time：40ms (Normal) Enclosure Rating：IP 65 | Source Voltage：DC12-24V, AC48V, AC110V, AC220V, AC230V, AC240, AC380V Full Voltage module：100~240V 50/60Hz Power Consumption：10 Watt Operating Temperature：-10℃ ~ +70℃. Output Contact Rating：250V @ 5A Dimension：310mm × 134mm × 72mm Weight：2.022kg |
