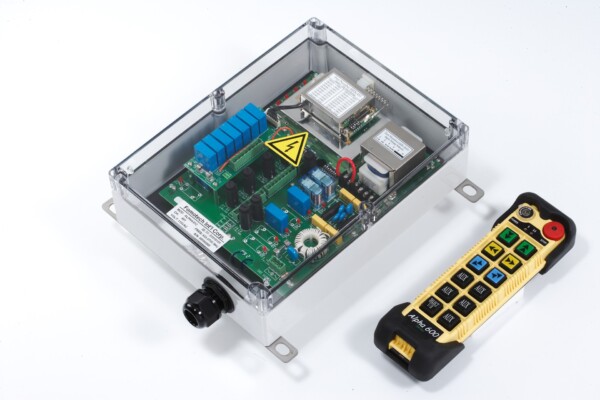

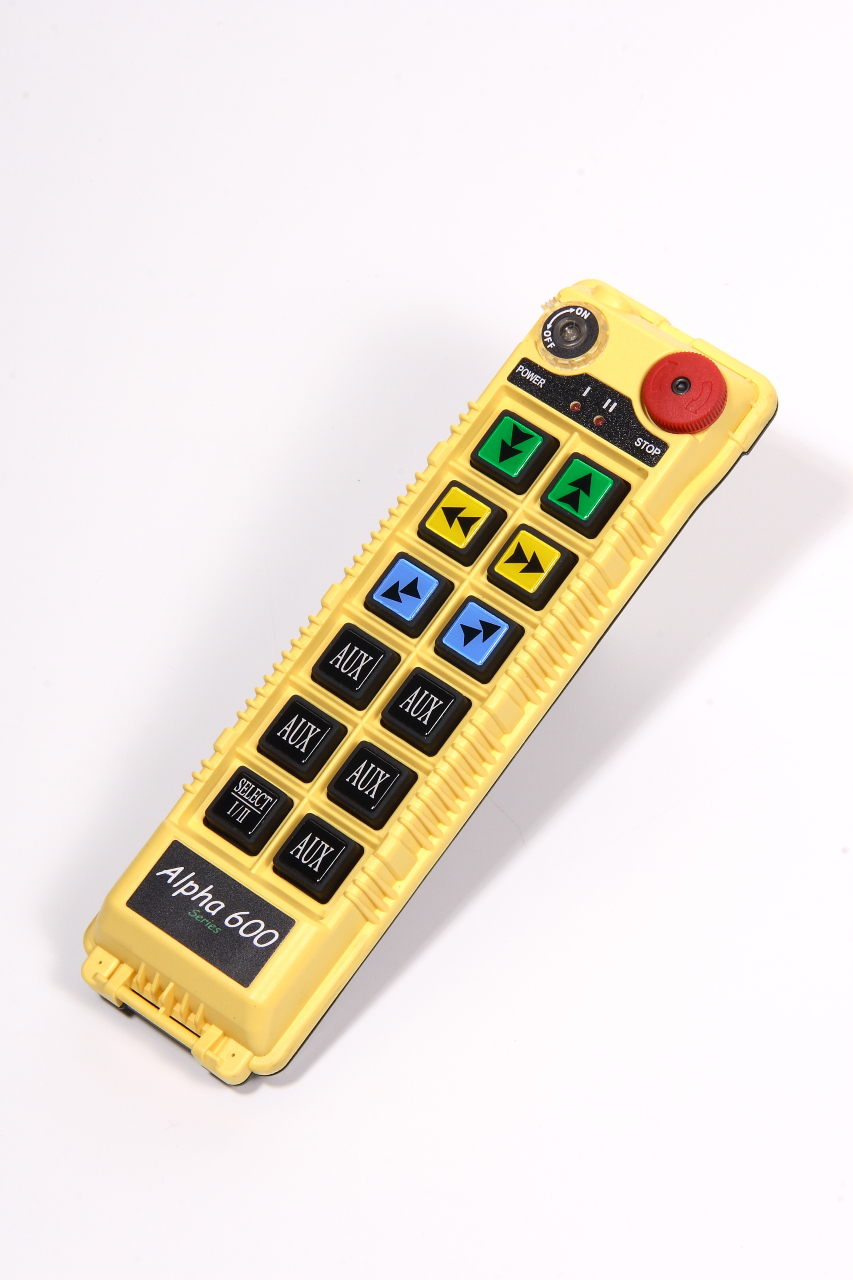

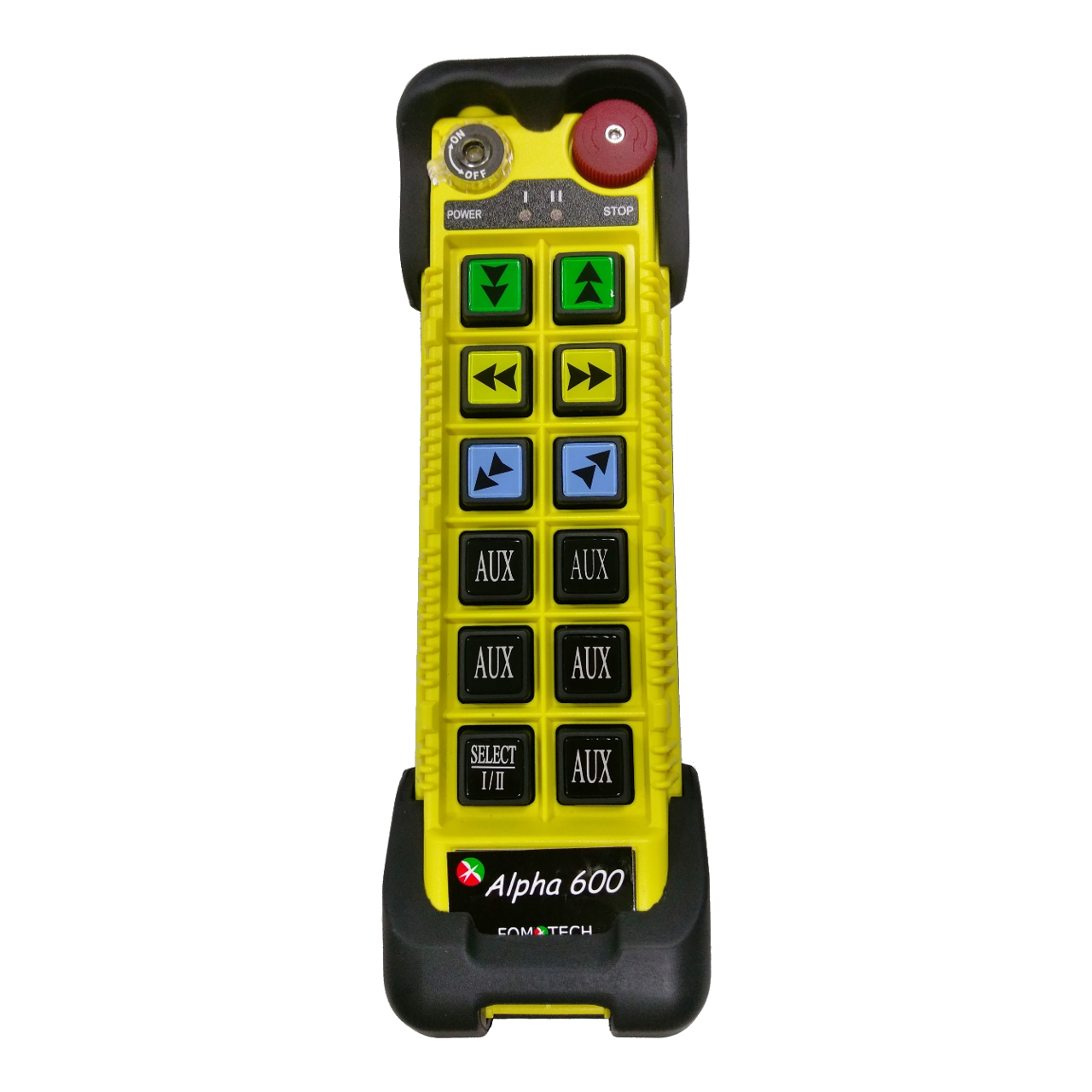

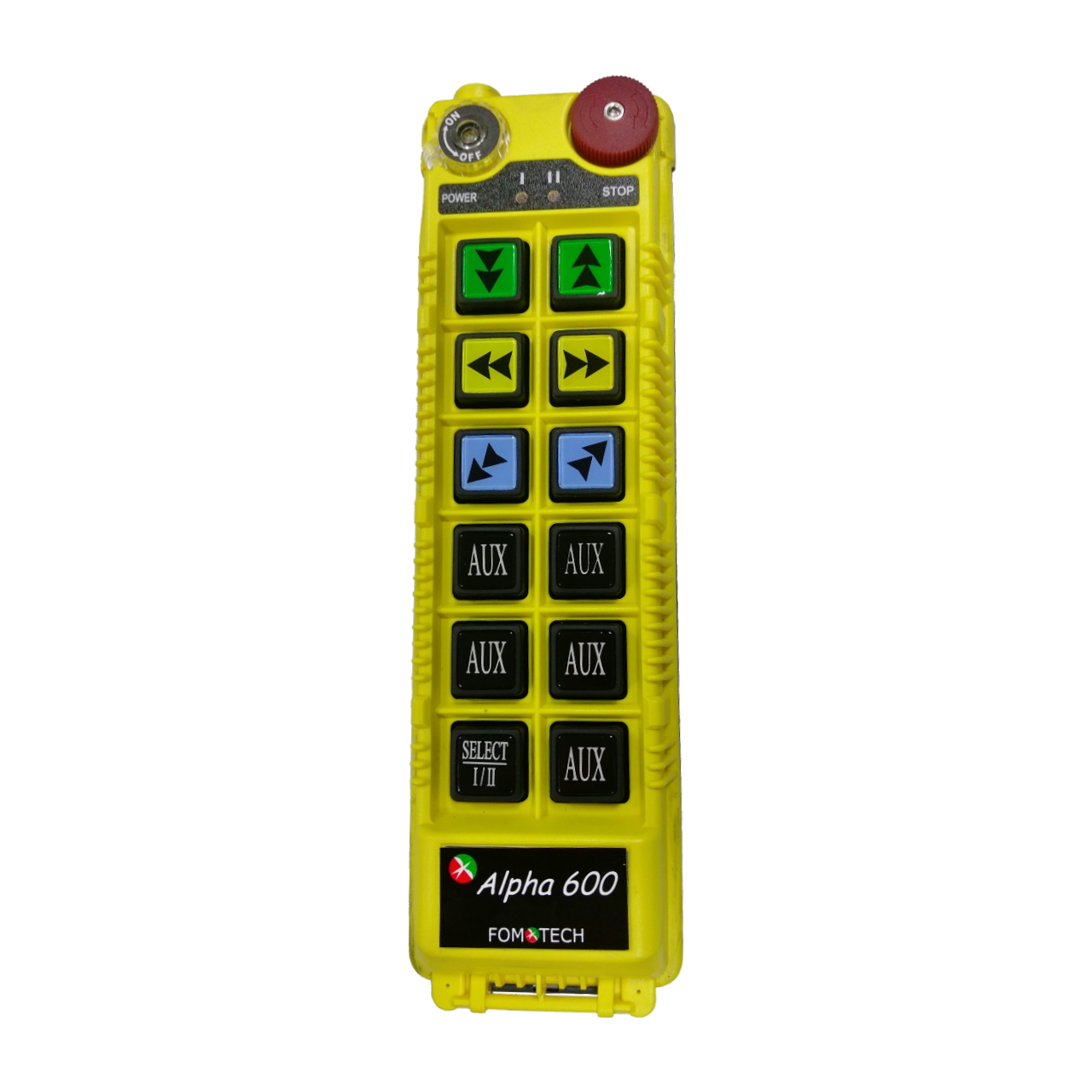

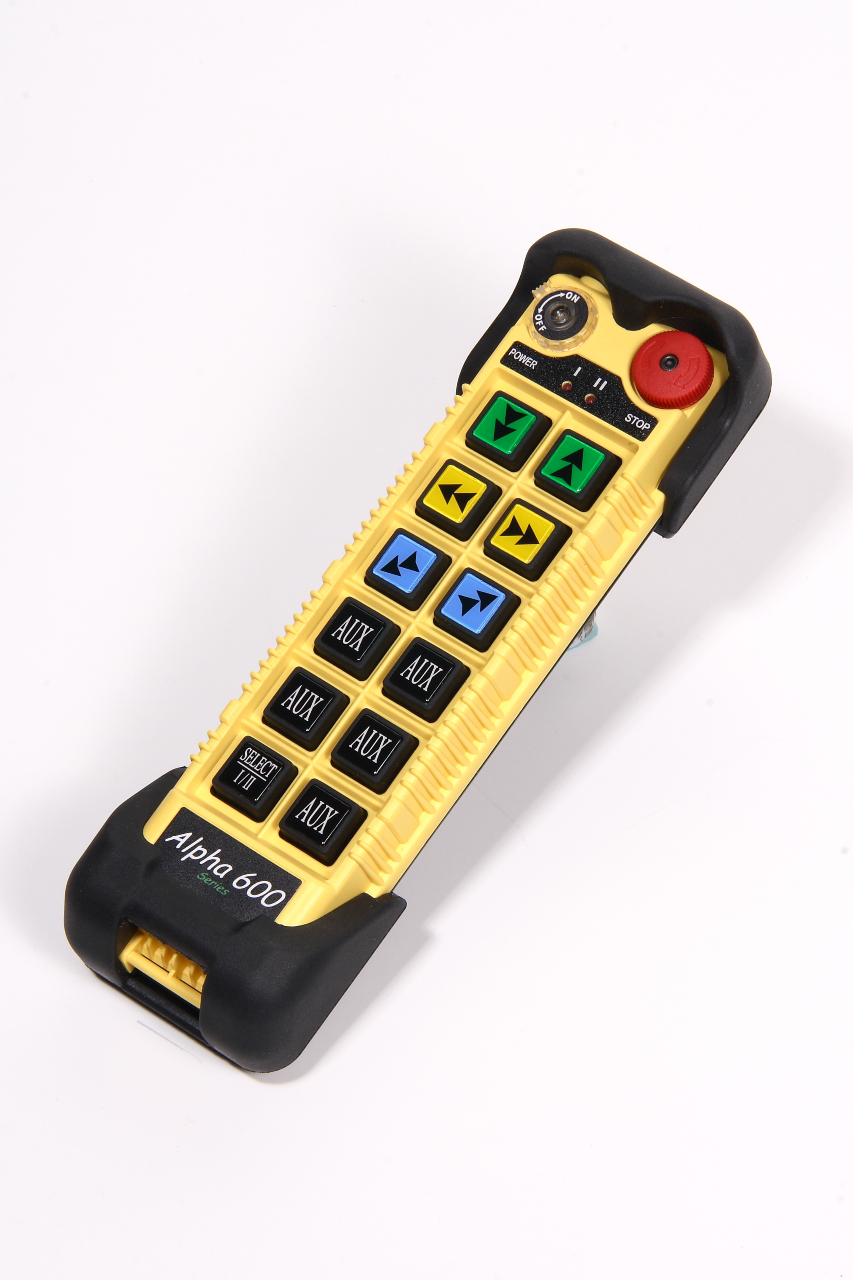

Alpha 612E-2
Pushbutton Type
(8) two-speed pushbuttons + (3) one-speed pushbuttons + (1) select pushbutton
Safety/Quality Approvals
CE EN 62368-1、FCC
Categories Alpha 600, Pushbutton Type
Tag 12 pushbutton
Specification
Transmitter | |
---|---|
Source Voltage: Alkaline AA battery x2 3V NI-MH AA battery x2 2.4V (No contact charging) Antenna Impedance: Internal Antenna 50Ω, external antenna is available. Dimension:235 × 68 × 30 mm Weight︰350g Enclosure Rating:IP66 Operating Temperature:-10℃ ~ 60℃ ( > 80℃ high temperature protection) Transmitting Power Consumption:≦ 20mA @3V (Various from encoding mode and transmitting power) Countinue Operating Time:> 100hrs @batteries full (2000mAh) | LV Voltage: 2.2V-2.0V (Normal Ver.) 2.2V-1.8V (13849 Ver.) ※Transmitter RF board Unit Frequency Range:301/419/433/480 MHz Transmitting Power:0.1mW ~ 10mW Frequency Control:TCXO+PLL Frequency Deviation:1ppm @25℃ Spurious Emission:< -50dBc Emission:F1D Antenna Impedance:50Ω ID Bit:16Bit Error detection code:Hamming code + CRC |
Receiver | |
---|---|
Frequency Band:301/419/433/480 MHz Channel Spacing:25kHz Frequency Control:PLL Frequency Drift:< 5ppm @-20℃ ~ 70℃ Frequency Deviation:< 1ppm @25℃ Sensitivity:< -115dBm Antenna Impedance:50Ω Responding Time:40ms (Normal) | Enclosure Rating:IP66 Source Voltage:DC12V-24V, AC24/32/36/48V, AC110V/240V, AC380/460V 50/60Hz Power Consumption:15W Operating Temperature:-10℃ ~ 70℃ Output Contact Rating:250V @5A Dimension:300 × 230 × 86 mm Weight:3.5kg |
