Specification

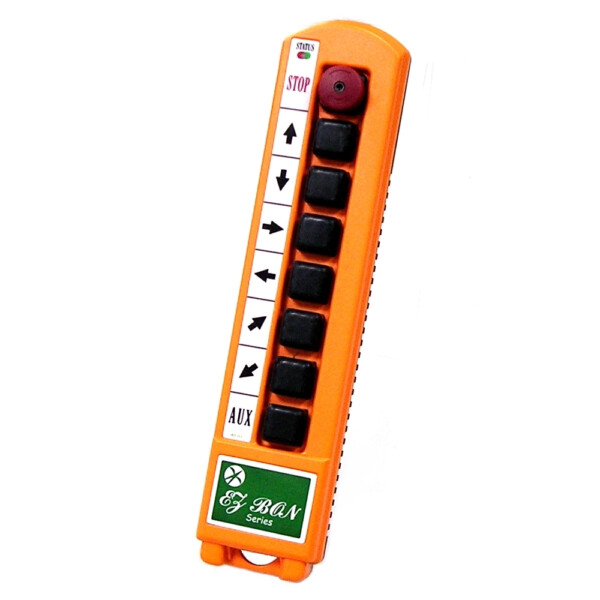

| Transmitter | |
|---|---|
| BAND：301/433/480MHz Transmitting Range：100 Meters (open areas) Hamming Distance：6 Channel Spacing：25 KHz Frequency Control：TCXO + PLL Frequency Drift：<5ppm @ -10℃ ~ +70℃ Frequency Deviation：<1ppm @ 25℃ Spurious Emission：-50dB | Transmitting Power：0.1~10 mW Emission：F1D Antenna Impedance：50 Ω Source Voltage：”AA” alkaline batteries*3 Current Drain：10~18mA Operating Temperature：-10℃ ~ +70℃ Dimension：272 x 63 x 47mm Weight：430g |
| Receiver | |
|---|---|
| Frequency Range：301/419/433/480MHz Channel Spacing：25KHz Hamming Distance：6 Frequency Control： RX module card or synthesizer (PLL) Frequency Drift：<5ppm @ -10℃ ~ +70℃ Frequency Deviation：< 1ppm @ 25℃ Sensitivity：<-125dBm | Antenna Impedance：50 Ω Data Decoder Reference：Quartz Crystals (PLL) Responding Time：50 ~ 150 ms Source Voltage：100~240VAC @ 50/60 Hz. Power Consumption：11VA Operating Temperature：-10℃ ~ +70℃ Output Contact Rating：250V @ 10A Dimension：310 x 134 x 72mm Weight：2,000g |
