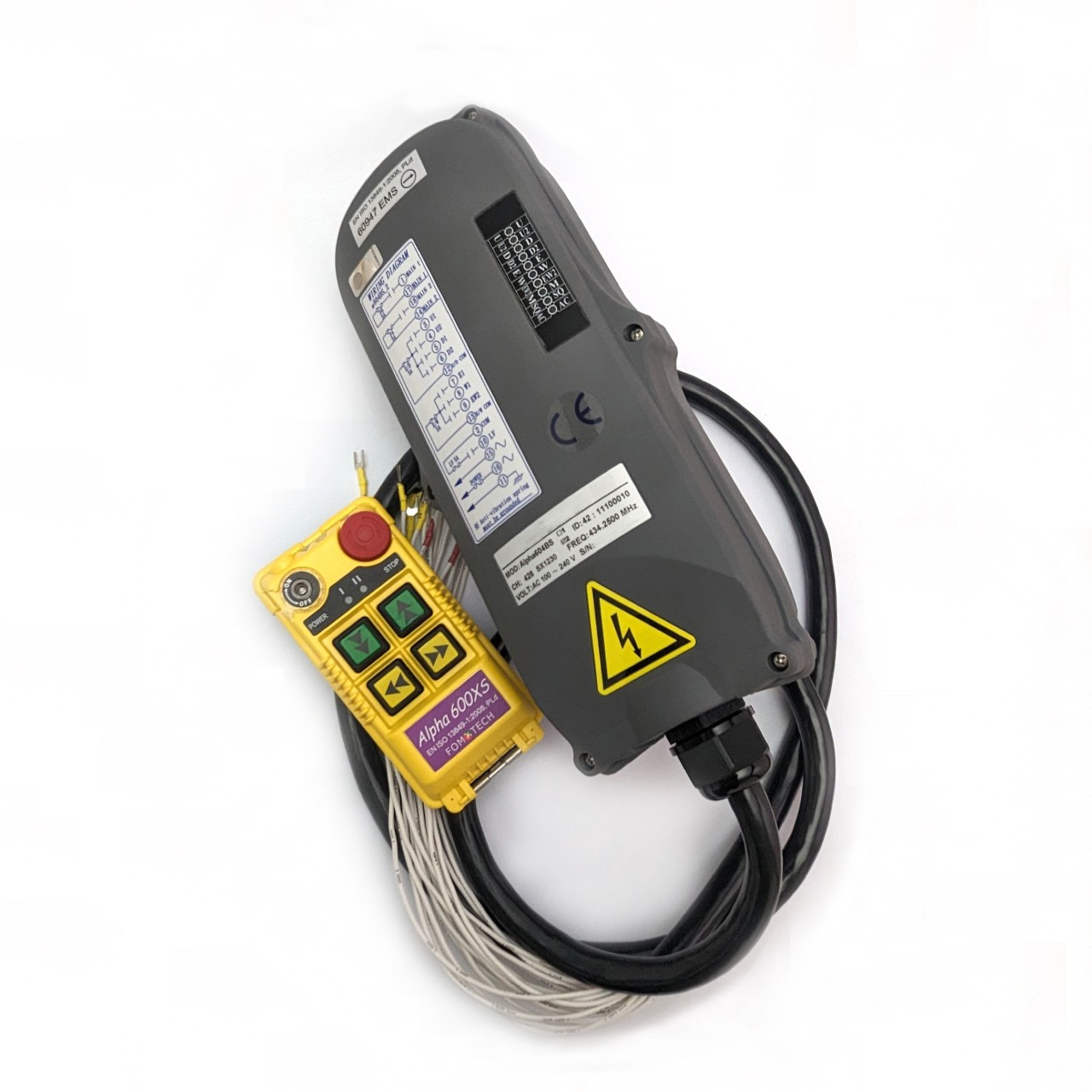

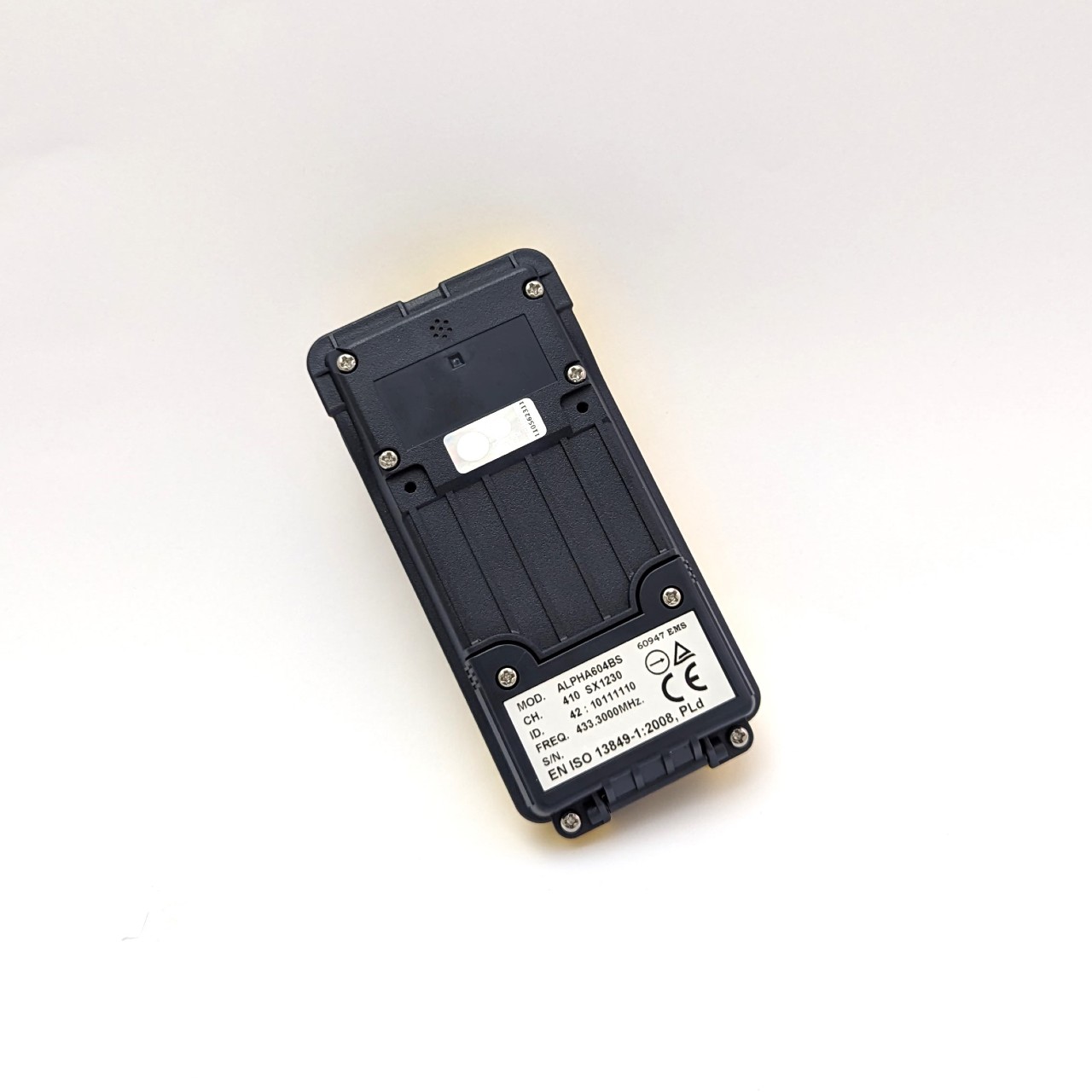

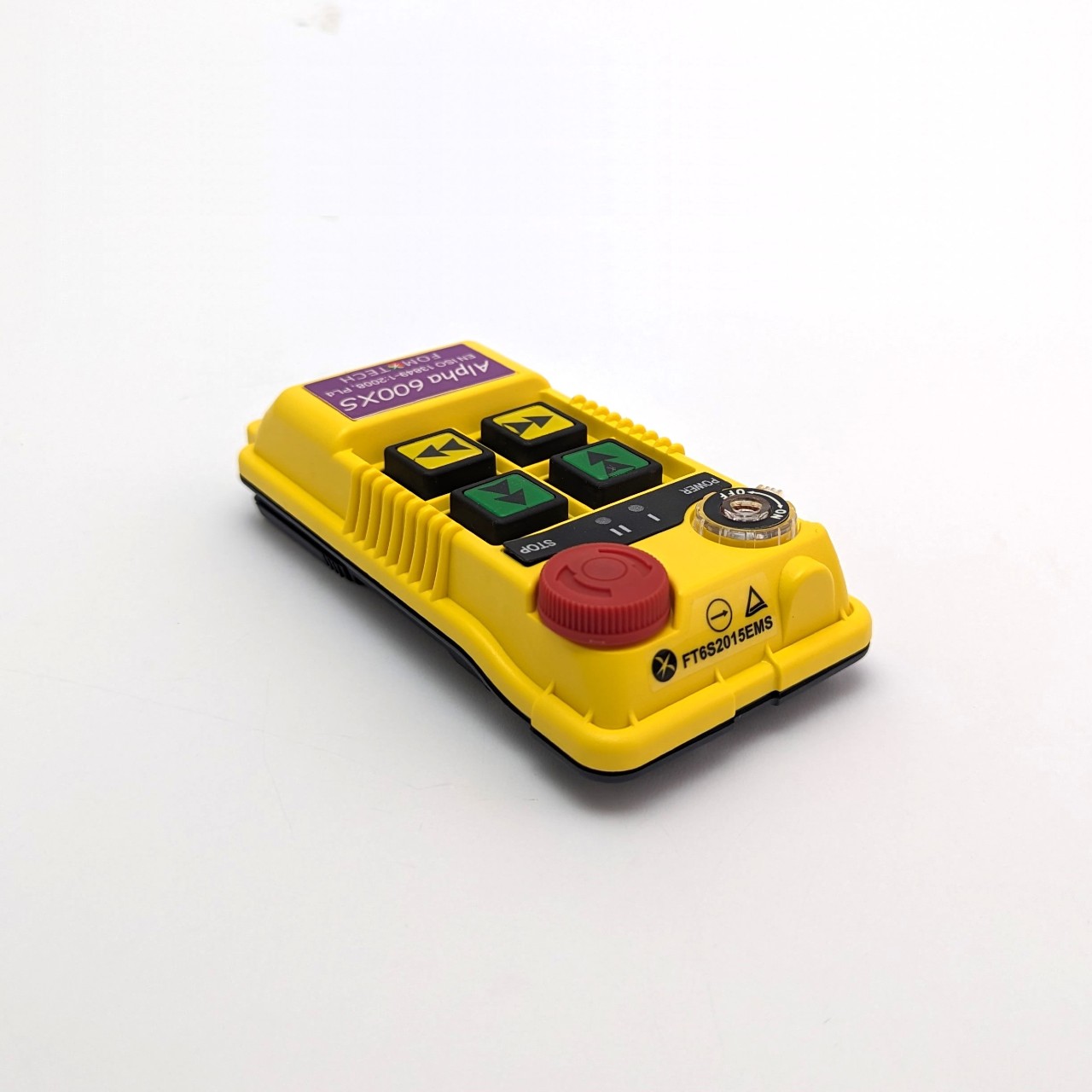

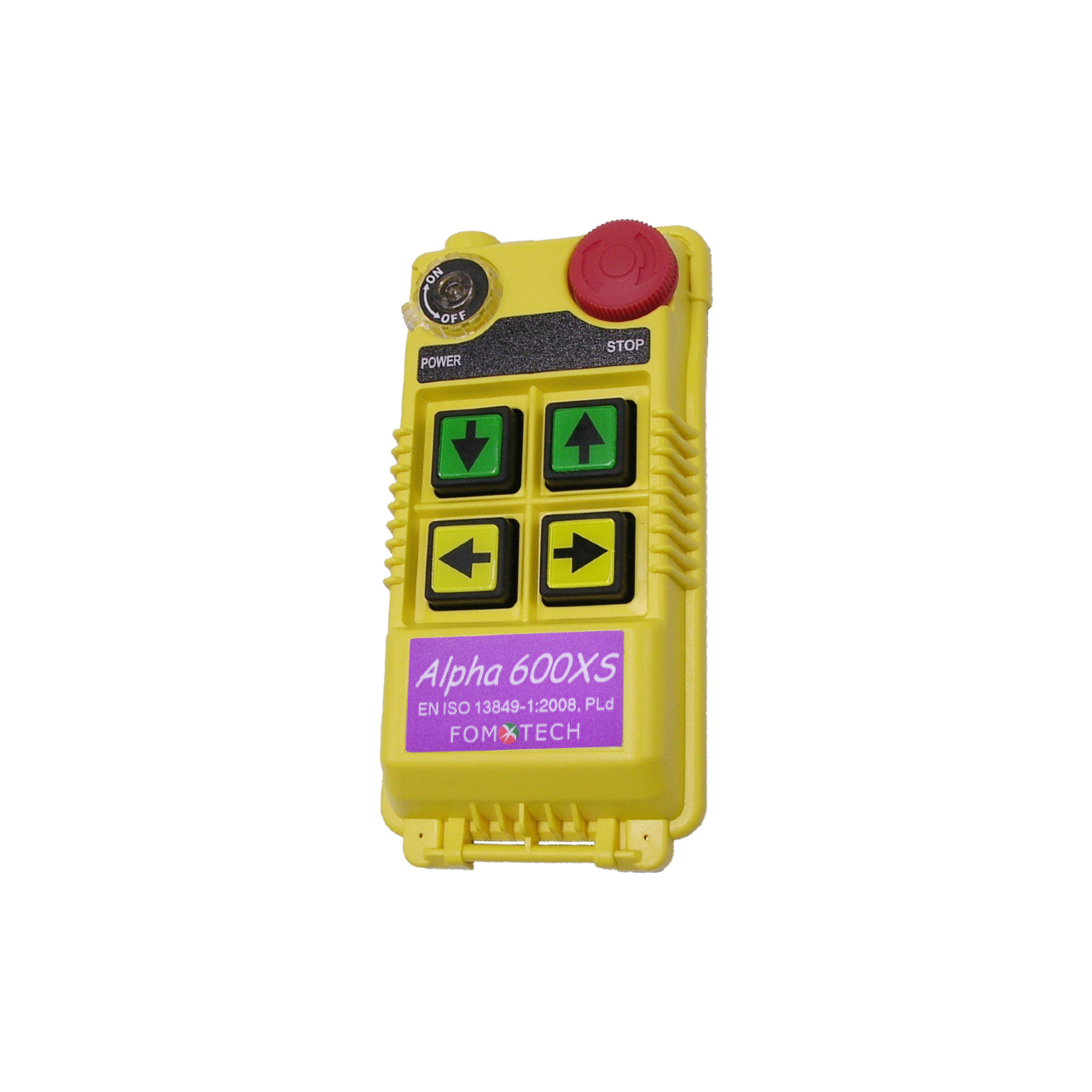

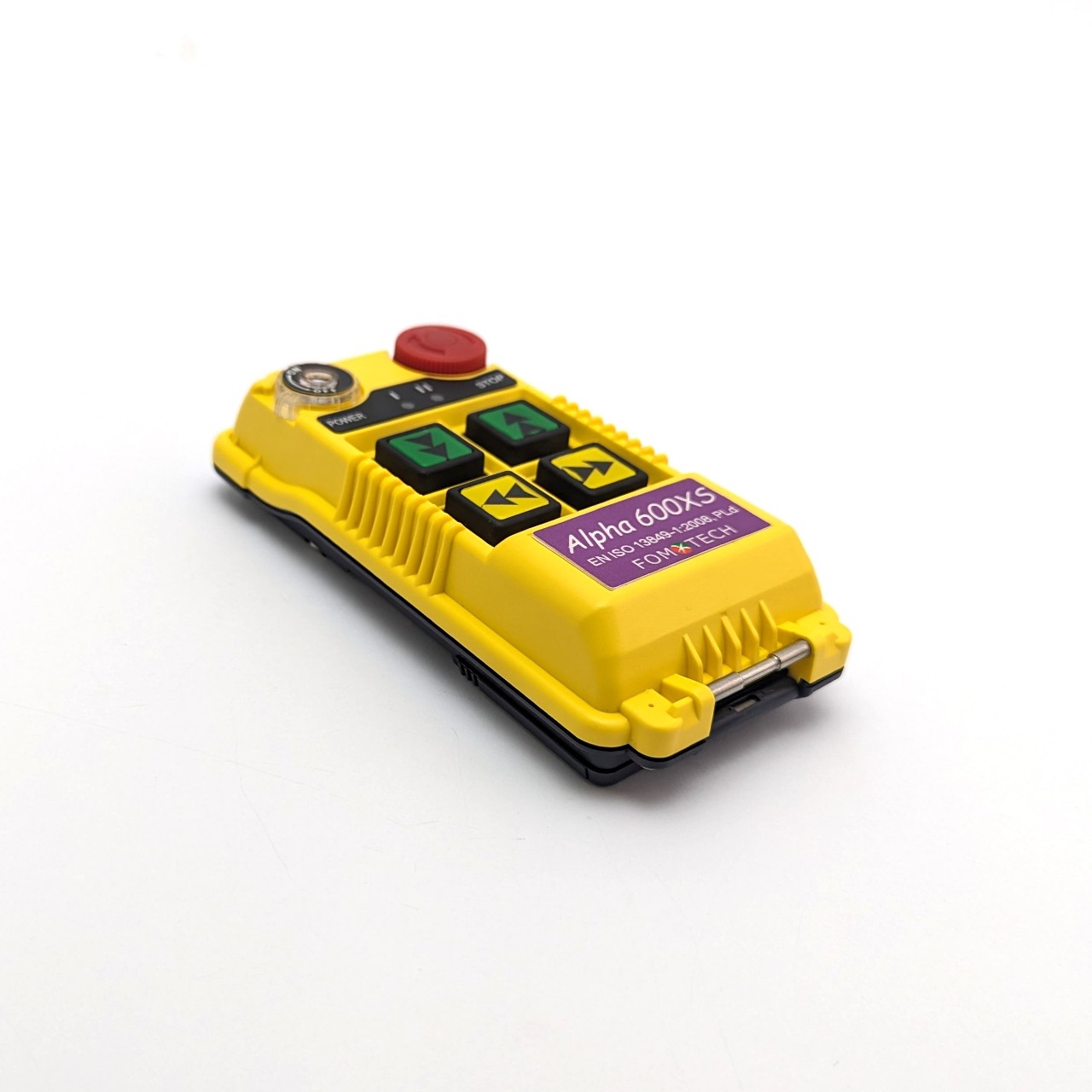

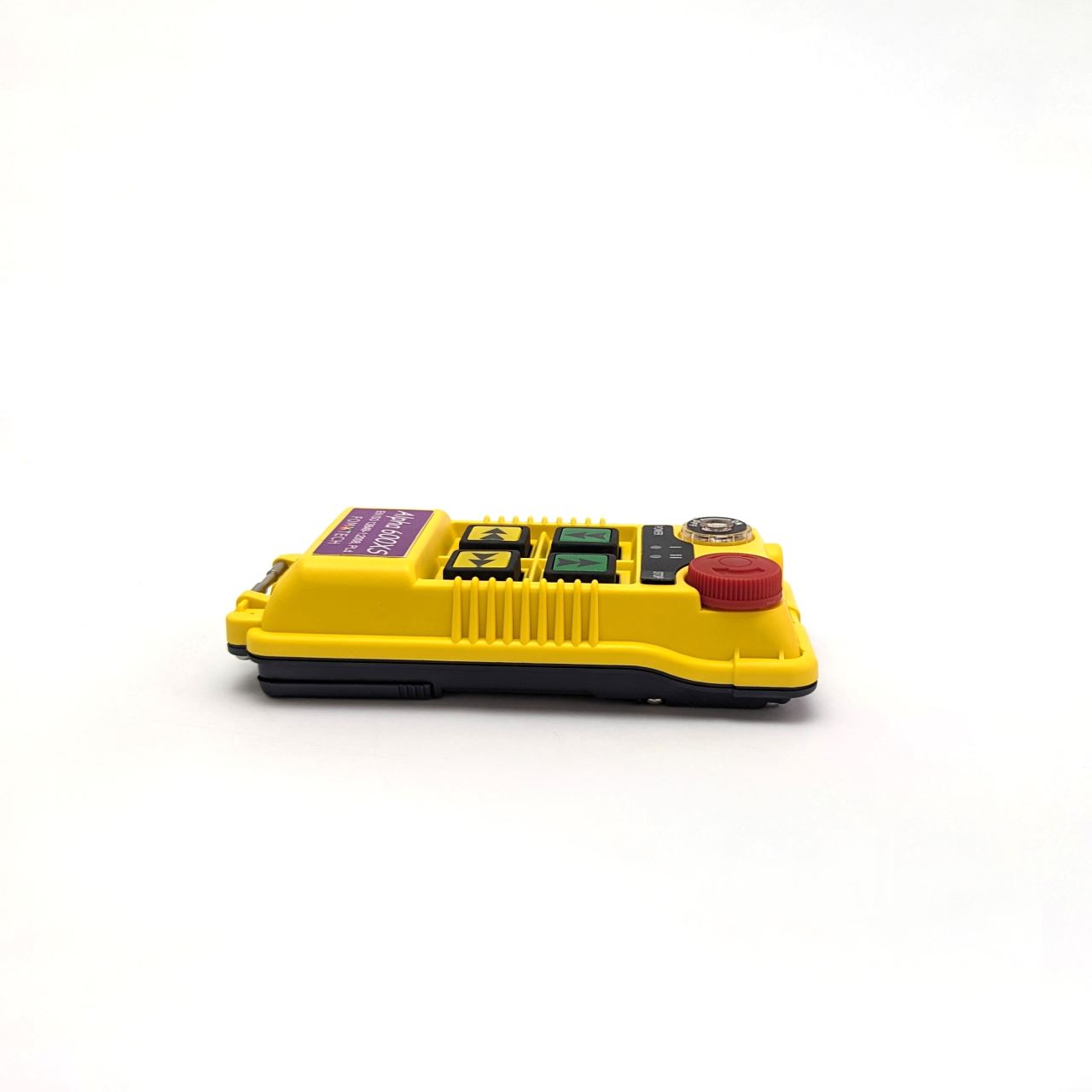

Alpha 604AS
Pushbutton Type
(4) one-speed pushbuttons
Advance Design
Dual independent decoder CPU circuits, including feedback circuit to detect dual MAIN relays. EN60947 compliant, E-Stop ensures correct operation under any conditions.
Safety/Quality Approvals
EN ISO 13849-1:2015, PLe, Cat.3、CE EN 62368-1、E-STOP:EN 60947
Specification
| Transmitter | |
|---|---|
| Source Voltage：AA size x2 alkaline 3.0V /NI-MH AA size x2 battery 2.4v (No contact charging) Antenna Impedance： Internal Antenna 50 ohms, external antenna is available. Dimension：140mm × 68mm × 30mm Weight︰220g Enclosure Rating：IP 65 Operating Temperature：-10℃~ +60℃ (>80℃high temperature protection) Transmitting Power Consumption： ≦20mA@3V (Various from encoding mode and transmitting power) Countinue Operating Time：>100hrs @batteries full (2000mAh) | LV Voltage： 2.2V –2.0V(Normal Ver.) / 2.2V –1.8V(13849 Ver.) ﹡Transmitter RF board Unit Frequency Range：433MHz Transmitting Power：0.1mW – 10mW Frequency Control：TCXO+PLL Frequency Deviation：1ppm @25℃ Spurious Emission：< -50dBc Emission：F1D Antenna Impedance：50 ohms ID 位元：16 Bit Error detection code: Hamming code + CRC |
| Receiver | |
|---|---|
| Frequency Band：433MHz Channel Spacing：25KHz Frequency Control：PLL 鎖相迴路 Frequency Drift：< 5ppm @ -20℃ ~ +70℃ Frequency Deviation：< 1ppm @ 25℃ Sensitivity：<-115dBm Antenna Impedance：50Ω Responding Time：40ms (Normal) Enclosure Rating：IP-65 | Source Voltage：DC12-24V, AC48V, AC110V, AC220V, AC230V, AC240, AC380V Full Voltage module：100~240V 50/60Hz Power Consumption：8 Watt Operating Temperature：-10℃ ~ +70℃. Output Contact Rating：250V @ 5A Dimension：310mm × 134mm × 72mm Weight：1.77kg |
