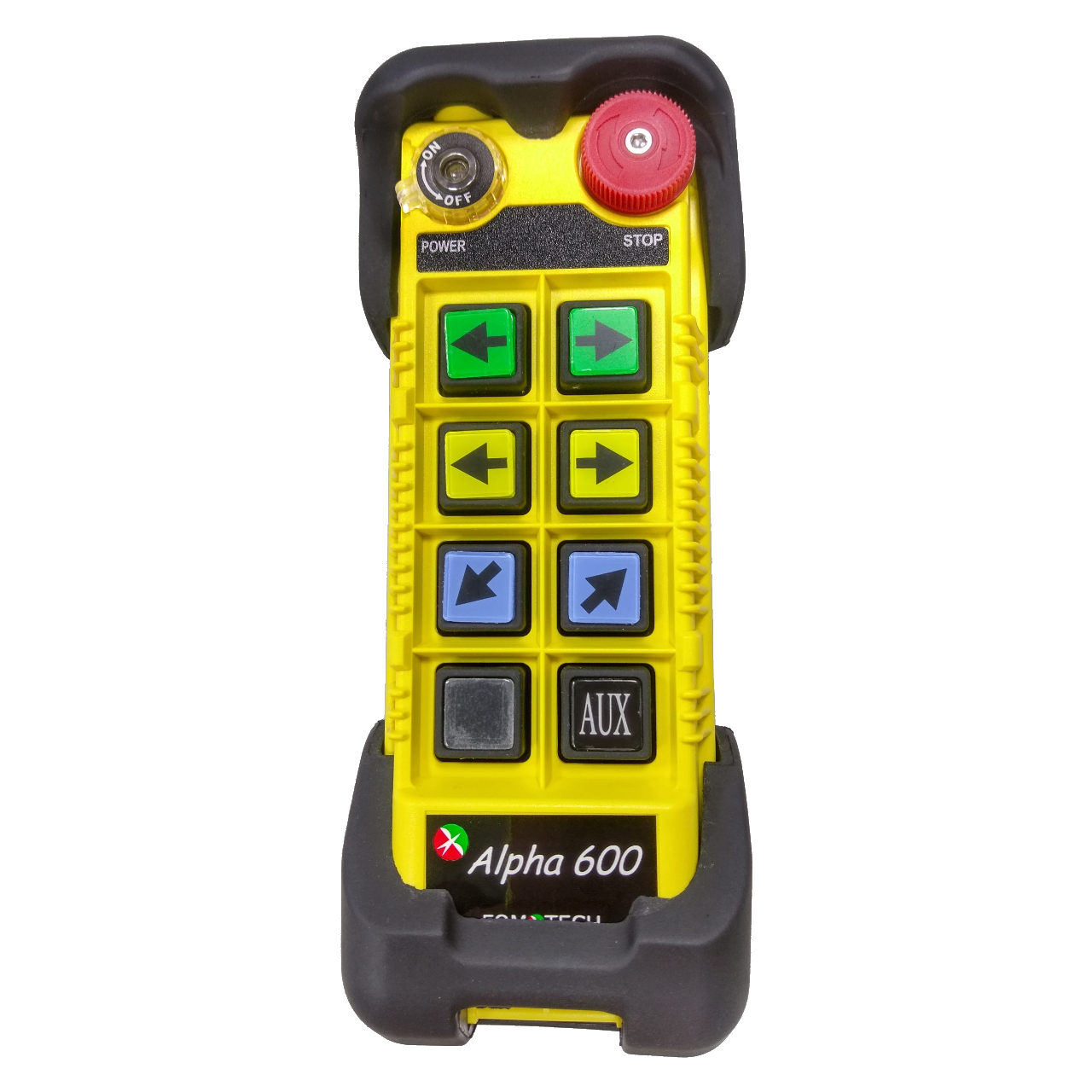

Alpha 607A
Pushbutton Type
(7) one-speed pushbuttons
Safety/Quality Approvals
CE EN 62368-1、FCC
Categories Alpha 600, Pushbutton Type
Tag 7 pushbutton
Specification
Transmitter | |
---|---|
Source Voltage:AA size x2 alkaline 3.0V /NI-MH AA size x2 battery 2.4v (No contact charging) Antenna Impedance: Internal Antenna 50 ohms, external antenna is available. Dimension:189mm × 68mm × 30mm Weight︰220g nclosure Rating:IP 65 Operating Temperature:-10℃~ +60℃ (> 80℃ high temperature protection) Transmitting Power Consumption: ≦ 20mA @ 3V (Various from encoding mode and transmitting power) Countinue Operating Time:> 100hrs @ batteries full (2000 mAh) | LV Voltage: 2.2V – 2.0V (Normal Ver.) / 2.2V – 1.8V (13849 Ver.) ※ Transmitter RF board Unit Frequency Range:301/419/433/480 MHz Transmitting Power:0.1mW – 10mW Frequency Control:TCXO+PLL Frequency Deviation:1 ppm @ 25℃ Spurious Emission:< -50 dBc Emission:F1D Antenna Impedance:50 ohms ID Bit:16 Bit Error detection code: Hamming code + CRC |
Receiver | |
---|---|
Frequency Band:301/419/433/480 MHz Channel Spacing:25 KHz Frequency Control:PLL Frequency Drift:< 5 ppm @ -20℃ ~ +70℃ Frequency Deviation:< 1ppm @ 25℃ Sensitivity:< -115 dBm Antenna Impedance:50Ω Responding Time:40ms (Normal) Enclosure Rating:IP 65 | Source Voltage:DC12-24V, AC48V, AC110V, AC220V, AC230V, AC240, AC380V Full Voltage module:100~240V 50/60Hz Power Consumption:10 Watt Operating Temperature:-10℃ ~ +70℃. Output Contact Rating:250V @ 5A Dimension:310mm × 134mm × 72mm Weight:2.022kg |
